GR2605

Motor Graders

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Watch video
Motor Graders

GR2605

Op Weight
19000 kg
Horsepower
260 HP
Length
9448 mm
Download brochure
Request price
Book Test drive

Description

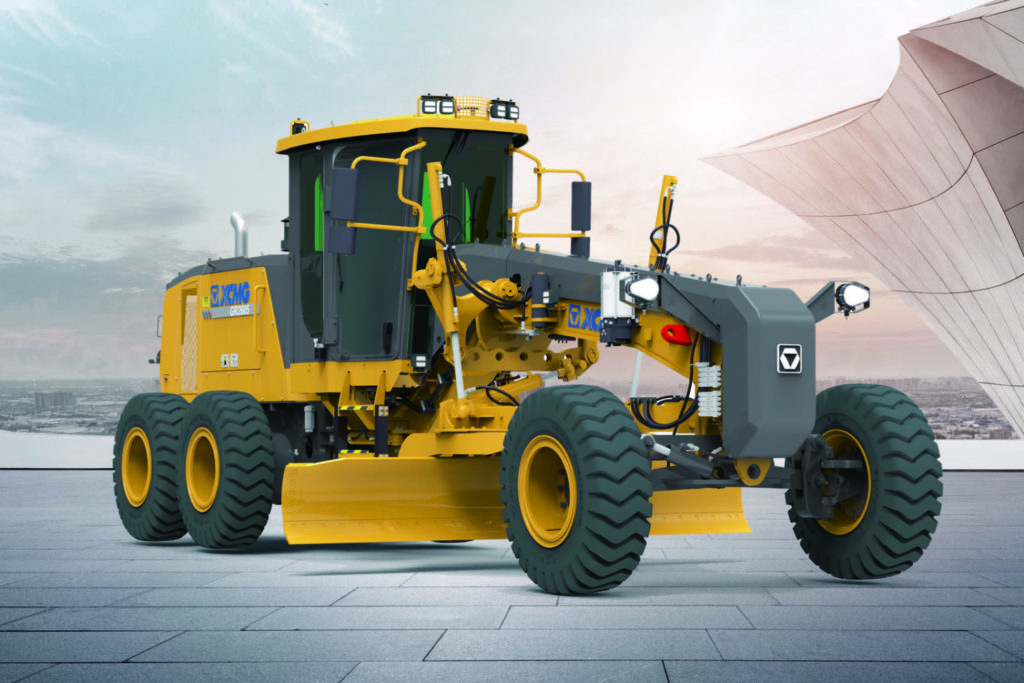

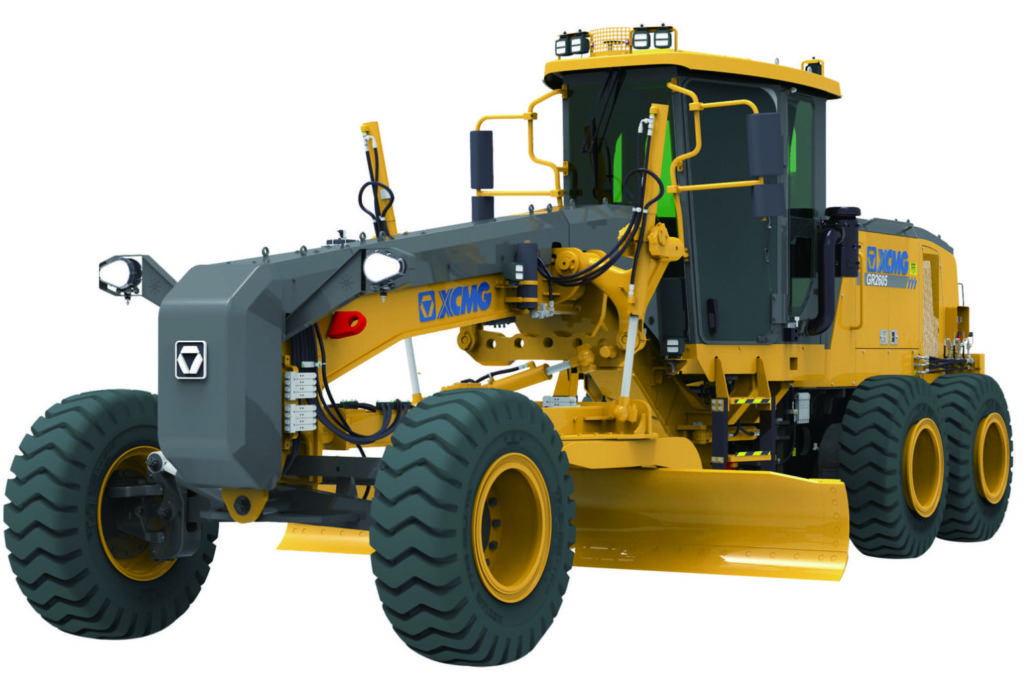

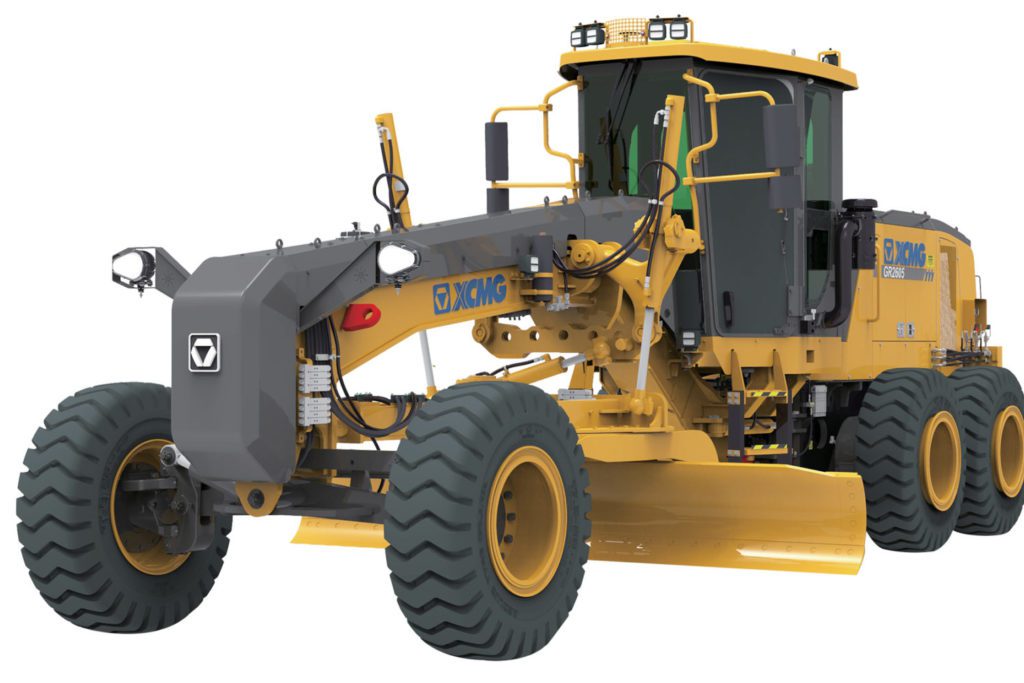

The XCMG GR2605 grader is the benchmark of graders in its 19 tonne size class. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent designs.

As a result, the GR2605 grader is durable, reliable, safe and comfortable – as well as being efficient to maintain. Renowned worldwide for its performance and value for money, the GR2605 is the ideal solution for customers seeking a 19 tonne grader for any application or industry.

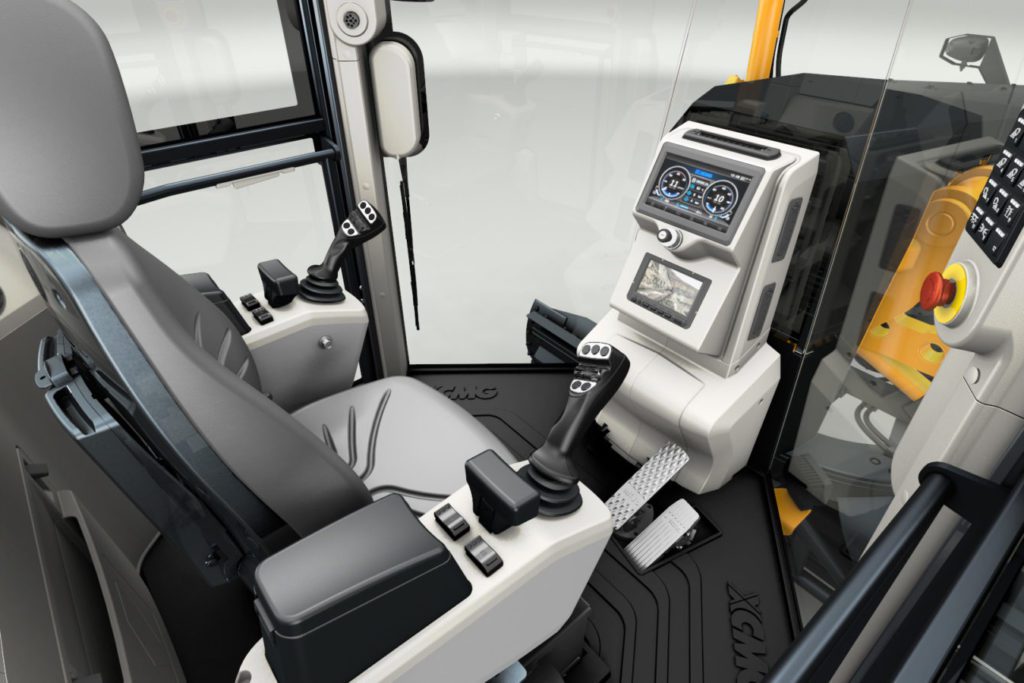

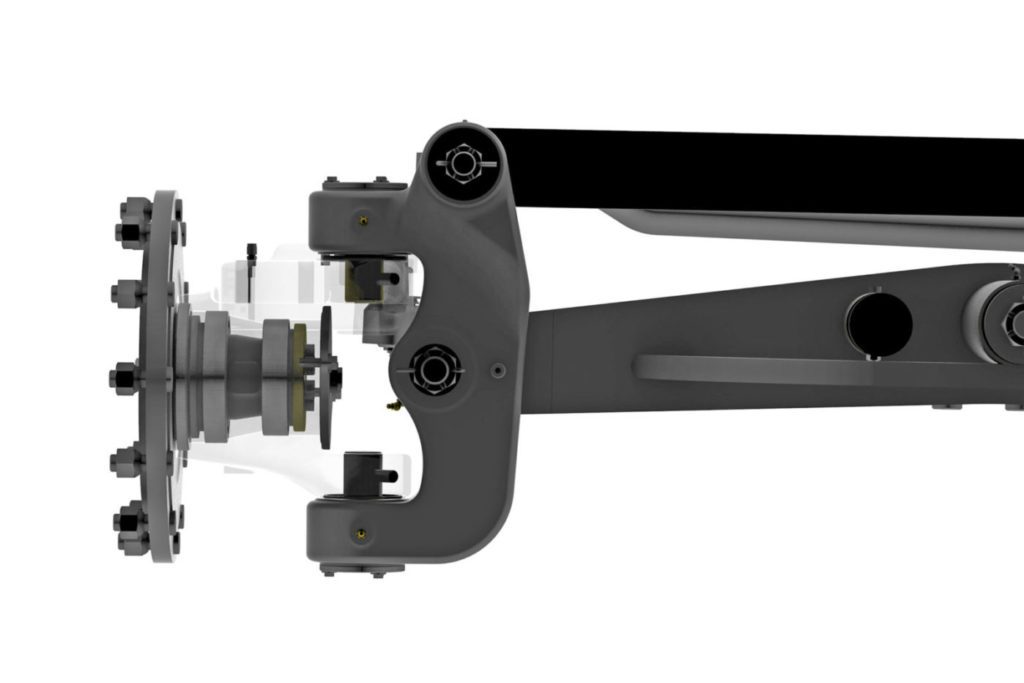

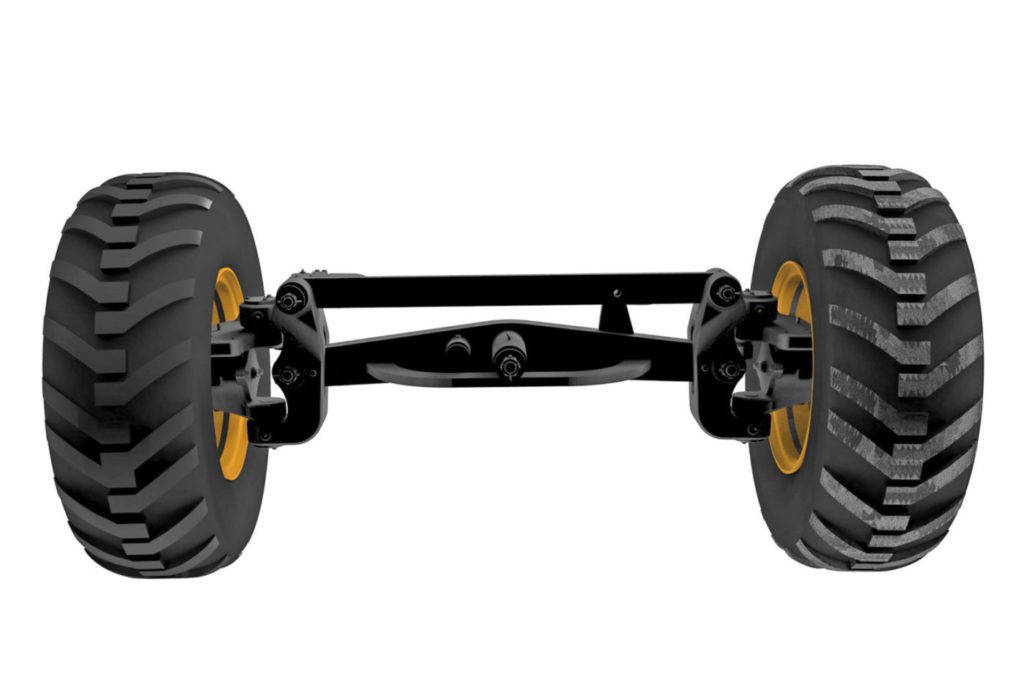

Equipped with a Cummins QSL8.9 engine, slewing bearing and overload protection circle drive, wet brake drive axle, a spacious and comfortable ROPS&FOPS cab and electronic parking system, the entire grader offers significant reliability, efficiency, comfort and control.

Specifications

Operating Weight
19000 kg (approx)
Engine
Cummins QSL8.9
Length
9448 mm
Width
2625 mm
Height
3472 mm
Tyre Spec
17.5R25
Ground Clearance (Front Axle)
592 mm
Tread
2156 mm
Axle Distance (Front to Rear)
6465 mm
Tread Between Middle and Rear Wheel
1622 mm
Forward Speed (km/h)
4.9 / 8 / 11 / 17.9 / 24.7 / 40.2
Rearward Speed (km/h)
4.9 / 11 / 24.7
Traction Force f=0.75
>99kN
Max Gradeability
>25%
Tyre Inflation Pressure
425 kPa
Working System Pressur
24.5 Mpa
Transmission Pressure
1.85-2.2 Mpa
Max Steering Angle Front Wheel
~49 Degrees
Max Tilt Angle Front Wheel
~18 Degrees
Max Swing Angle Front Axle
~16 Degrees
Max Swing Angle of Tandem
Front 15 Deg / Rear 15 Deg
Max Steering Angle of Frame
~25 Degrees
Max Turning Radius
7.6m
Coolant
50 L (approx)
Fuel Tank
418 L
Engine Oil
24 L
Transmission Oil
38 L
Tandem Oil
Each 85 L
Drive Axle
44 L
Hydraulic Oil
193 L
Max Lift Height
452 mm
Max Shoveling Depth
755 mm
Max Tilt Angle
90 Degrees
Cutting Angle
Front 40 Deg / Rear 5 Deg
Slewing Angle
360 Degrees
Length x Chord Height
3965 x 610 mm
