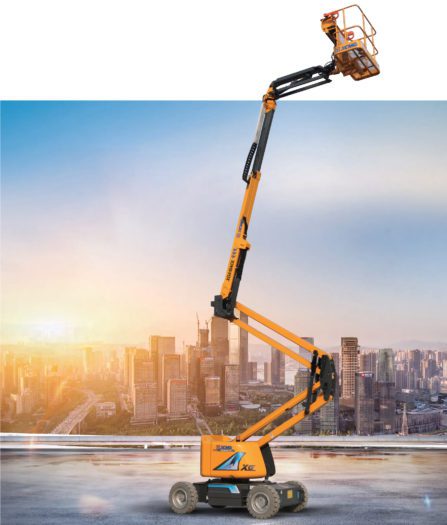

XGA16ACE

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGA16ACE

Max Work Height
15.8m
Max Platform Height
13.8m
Load Capacity
227kg
Max Tailswing
Zero
Download brochure
Request price
Book Test drive

Description

XGA16ACE Elevating Work Platform features and benefits:

  • Multi-function controls improve operating efficiency.
  • Proportional drive, lift and lowering for smooth operation.
  • AC electric drive walking for longer working hours.
  • Various accessories and options (airline, AC power, Lithium battery, non-marking / foam tyres, etc).
  • Zero tailswing, zero emission and quiet operation make the XGA16ACE EWP the machine of choice for indoor applications.

Specifications

Max Working Height
15.8m
Max Platform Height
13.8m
Load Capacity
227kg
1st Boom Luffing Range
0 ~ +60 Degrees
2nd Boom Luffing Range
-8 ~ +75 Degrees
Fly Jib Luffing Range
-60 ~ +80 Degrees
Rotation Angle of Turntable
335 Degrees
Max Tail Wagging
0mm (Zero Tailswing)
Platform Size
700mm x 1400mm x 1150mm
Rotation Angle of Platform
160 Degrees
Total Weight
6900kg
Maximum Travel Speed
5.2km/h
Minimum Turning Radius
3.15m
Minimum Ground Clearance
210mm
Maximum Gradeability
30%
Tyre Specification
250-15 / 240/55D17.5 / 250-15/7.00
Engine Model
N/A
Rated Engine Power
N/A
Overall Length
6600mm
Overall Width
1750mm
Overall Height
2000mm
Wheelbase
2010mm
