XGA16K

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGA16K

Max Work Height
16.6m
Max Platform Height
14.6m
Load Capacity
256kg
Horizontal Reach
8.8m
Download brochure
Request price
Book Test drive

Description

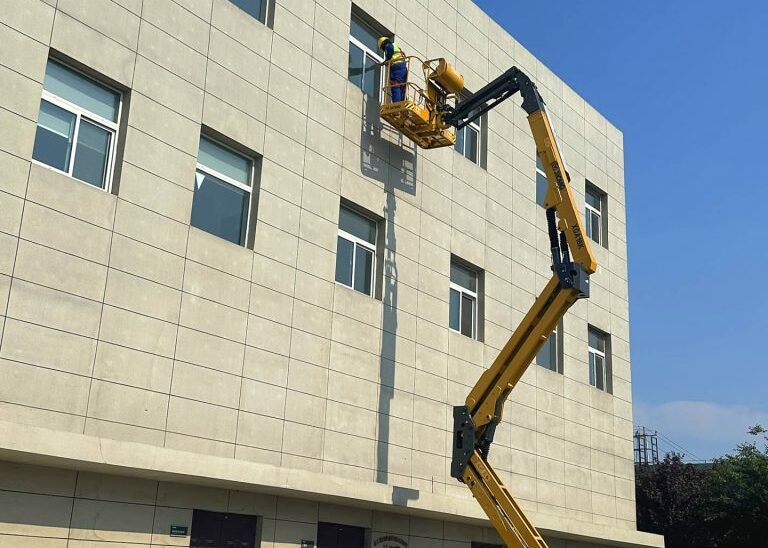

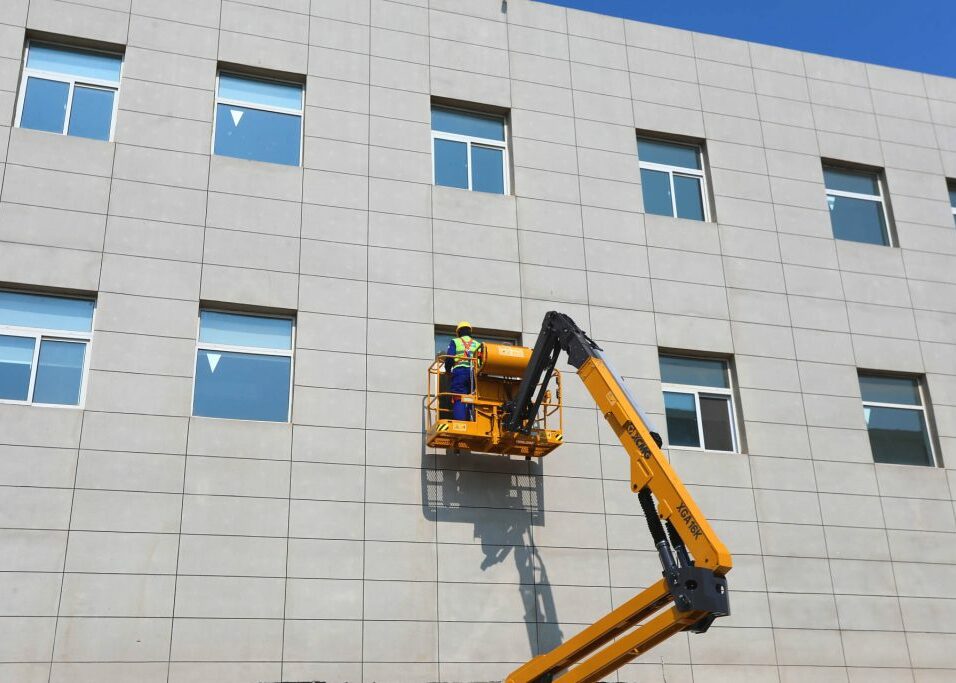

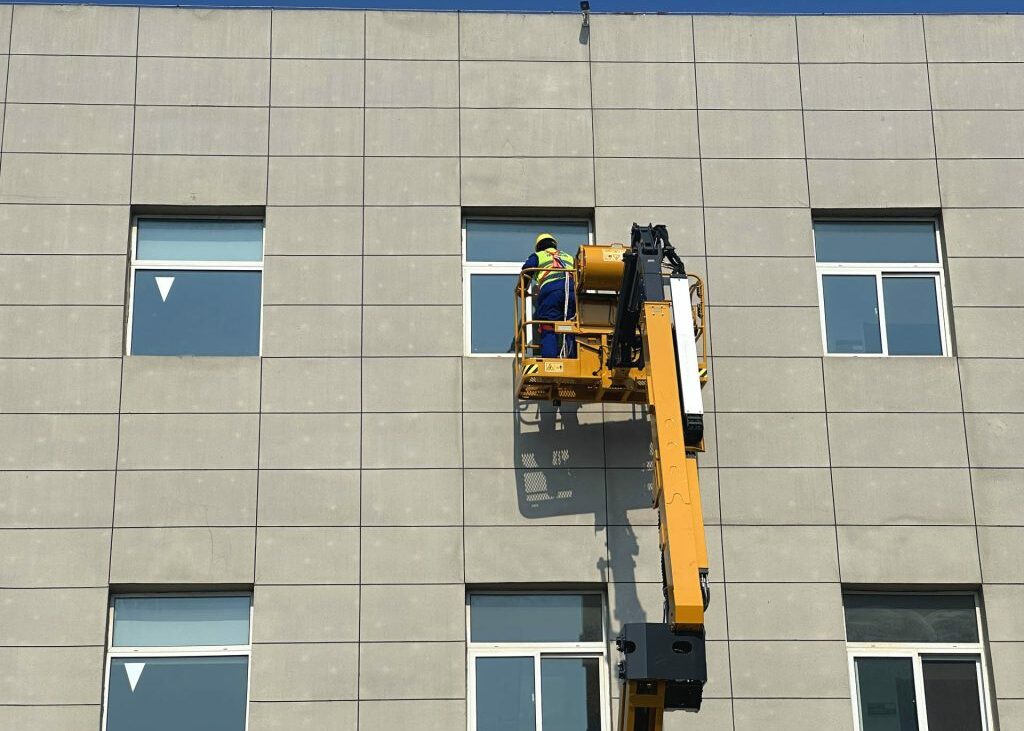

The XCMG Australia XGA16K Boom Lift is designed for efficient material handling in warehouses and industrial settings. With capacities from 240kg to 1.5t, it blends strength and agility for reliable elevation tasks.

Whether you need Maintenance Platforms, Personnel Lifts, or Facility Platforms, XCMG Australia has you covered. Explore our range, including Electric Boom Lifts and Outdoor Access Equipment, to boost operational efficiency. Trust XCMG Australia for innovative material handling solutions.

Specifications

Max Working Height
16.63m
Max Platform Height
14.63m
Load Capacity of Extended Platform
256/350 (Limited) kg
Minimum Ground Clearance
300mm
1st Boom Luffing Range
0～+65 Degrees
2nd Boom Luffing Range
-11～+75 Degrees
Fly Jib Luffing Range
-65～+70 Degrees
Rotation Angle of Turntable
355 Discontinuous Rotation
Maximum Tail Swing Stowed
0 mm
Platform Size
1.83 x 0.76 x 1.15 m
Rotation Angle of Platform
160 Degrees
Total Machine Weight
7600kg
Maximum Travel Speed
5.5 km/h Contracted – 0.6 km/h Extended
Minimum Turning Radius
3.2 m Inside – 4.7 m Outside
maximum Gradeability
30% / 45% (17 / 24 Degrees)
Overall Length
6.85m Stowed in Operation – 5.6m Transport, Short Arm Folded Down
Overall Width
2.32 m
Overall Height
2.38 m
Tyre Specification
33×12-20/7.5 Solid tyres – Standard Option 315/55D20-18 Filled solid tyres – Optional
Wheelbase
2.38 m
Batteries
12 V DC
Engine Type
Kubota V2403BM-DI-CTO4e (Stage Ⅲ)
Engine Power
36kW / 2600 rpm
