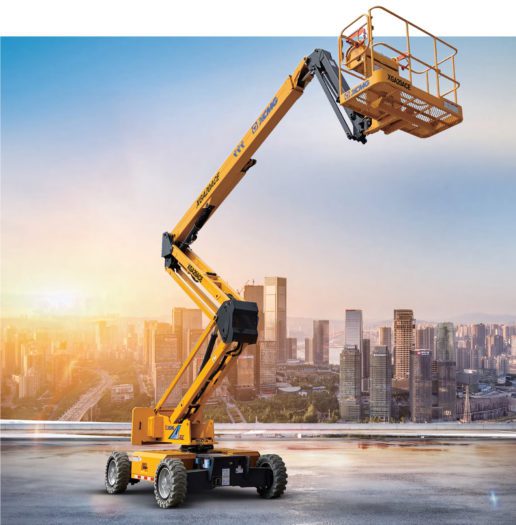

XGA20ACE

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGA20ACE

Max Work Height
20.6m
Max Platform Height
18.6m
Load Capacity
350kg
Max Tailswing
565mm
Download brochure
Request price
Book Test drive

Description

XGA20ACE Elevating Work Platform features and benefits:

  • Multi-function controls improve operating efficiency.
  • Proportional drive, lift and lowering for smooth operation.
  • AC electric drive walking for longer working hours.
  • Various accessories and options (airline, AC power, Lithium battery, non-marking / foam tyres, etc).
  • Compact design for ease of transport.
  • Tight turning radius allows access in and around confined work areas to increase productivity.

Specifications

Max Working Height
20.6m
Max Platform Height
18.6m
Load Capacity
256/350kg
1st Boom Luffing Range
0 ~ +72 Degrees
2nd Boom Luffing Range
0 ~ +73 Degrees
Fly Jib Luffing Range
-64 ~ +70 Degrees
Rotation Angle of Turntable
360 Degrees (Continue)
Max Tail Wagging
565mm
Platform Size
1800mm x 760mm
Rotation Angle of Platform
160 Degrees
Total Weight
9100kg
Maximum Travel Speed
4.8km/h
Minimum Turning Radius
5.00m
Minimum Ground Clearance
300mm
Maximum Gradeability
45%
Tyre Specification
830×285 / (315/55D20)
Battery Specification
48V / 420Ah (DC)
Main Motor Specification
12kW / 32V (AC)
Drive Motor Specification
3.3kW / 32V (AC)
Overall Length
8490mm
Overall Width
2490mm
Overall Height
2380mm
Wheelbase
2500mm
