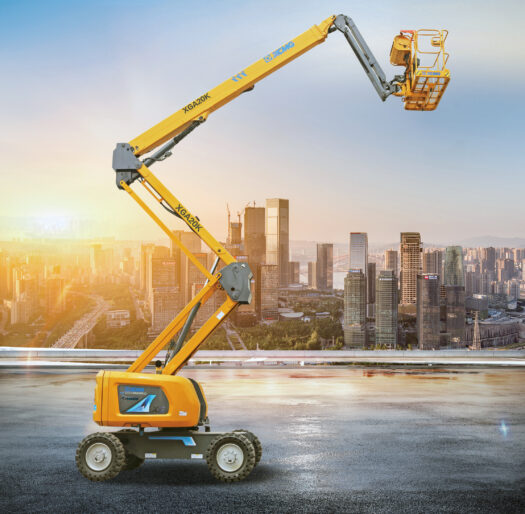

XGA20K

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGA20K

Max Work Height
20.6m
Max Platform Height
18.6m
Load Capacity
256kg
Horizontal Reach
12m
Download brochure
Request price
Book Test drive

Description

The XCMG Australia XGA20K Boom Lift is designed for efficient material handling in warehouses and industrial settings. It blends strength and agility for reliable elevation tasks.

Whether you need Maintenance Platforms, Personnel Lifts, or Facility Platforms, XCMG Australia has you covered. Explore our range, including Electric Boom Lifts and Outdoor Access Equipment, to boost operational efficiency. Trust XCMG Australia for innovative material handling solutions.

Specifications

Max Working Height
20.63m
Max Platform Height
18.63m
Load Capacity
256/350 (Limited) kg
Minimum Ground Clearance
330mm
1st Boom Luffing Range
0～+72 Degrees
2nd Boom Luffing Range
0～+73 Degrees
Fly Jib Luffing Range
-65～+70 Degrees
Rotation Angle of Turntable
360
Rotation Angle of Platform
160
Tail Swing
540 mm
Platform Size
1.83 x 0.76 x 1.15 m
Total Machine Weight
9900kg
Maximum Travel Speed
5.5 km/h Contracted – 0.6 km/h Extended
Minimum Turning Radius
2.3 m Inside – 5 m Outside
maximum Gradeability
30% / 45% (17 / 24 Degrees)
Overall Length
8.52m Stowed in Operation – 6.26m Transport, Short Arm Folded Down
Overall Width
2.3 m
Overall Height
2.4 m
Tyre Specification
36X14-20 – 355/55D625
Wheelbase
2.5 m
Batteries
12 V DC proprtional
Engine Type
Kubota V2403BM-DI-CTO4e (Stage Ⅲ)
Engine Power
36kW / 2600 rpm
