XGS16K

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGS16K

Max Work Height
16m
Max Platform Height
14m
Load Capacity
272k
Horizontal Reach
12.7m
Download brochure
Request price
Book Test drive

Description

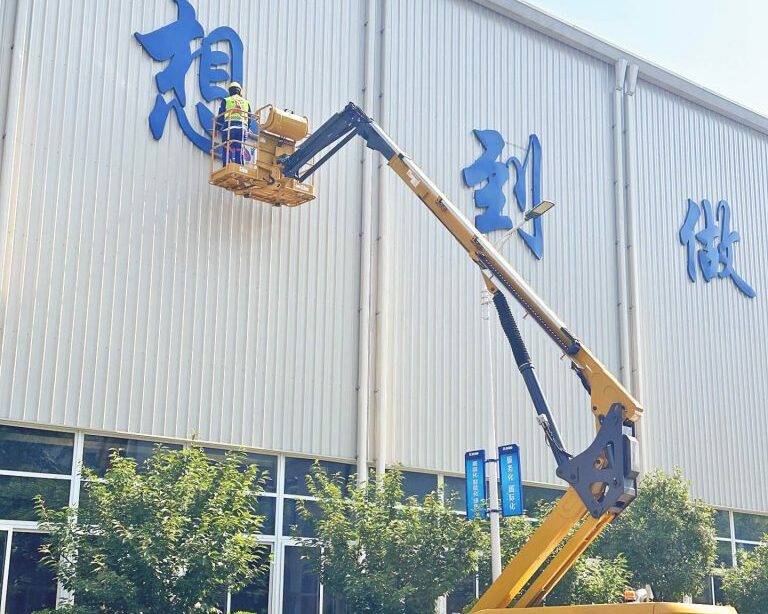

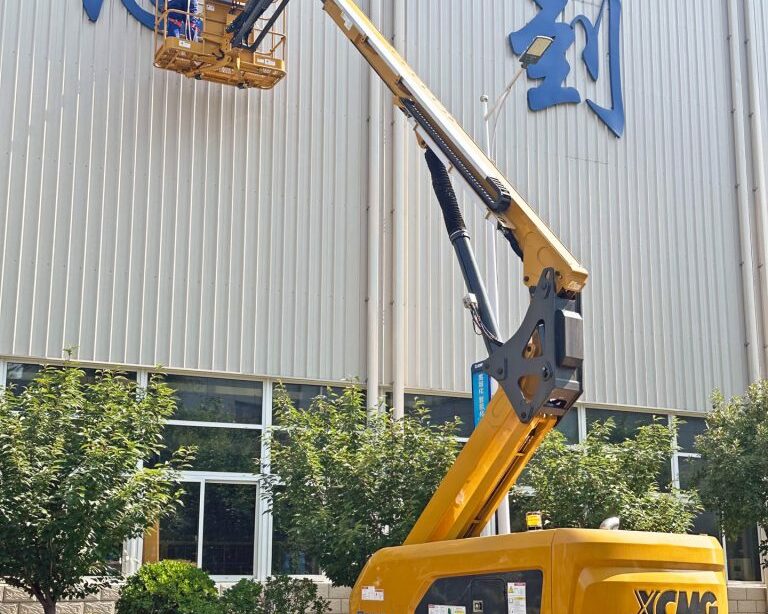

The XCMG Australia XGS16K Boom Lift is designed for efficient material handling in warehouses and industrial settings. With capacities from 220kg to 1.5t, it combines strength and agility for reliable elevation solutions.

Whether for Maintenance Platforms, Personnel Lifts, or facility needs, XCMG Australia offers practical and innovative options. Explore our Electric Boom Lifts to enhance operational efficiency. Trust XCMG Australia for reliable material handling solutions.

Specifications

Max Working Height
16m
Max Platform Height
14m
Horizontal Reach
12.7m
Load Capacity of Extended Platform
272/350 (Limited) kg
Minimum Ground Clearance
300mm
Boom Luffing Range
-14～+73 Degrees
Fly Jib Luffing Range
-65～+70 Degrees
Rotation Angle of Turntable
360 Degrees
Maximum Tail Swing Stowed
1120 mm
Platform Size
1.83 x 0.76 x 1.15 m
Rotation Angle of Platform
160 Degrees
Total Machine Weight
8050kg
Maximum Travel Speed
6 km/h Contracted – 0.6 km/h Extended
Minimum Turning Radius
1.9m Inside / 4.7m Outside
maximum Gradeability
45% 24 Deg Counterweight End Up / 40% 21 Deg Counterweight End Down
Overall Length
9.4 m Stowed in Operation / 9.1 m Transport Short Arm Folded Down
Overall Width
2.3 m
Overall Height
2.48 m
Tyre Specification
835×295-20 / 7.5
Wheelbase
2.36 m
Batteries
12V DC Proportional Control
Engine Type
Kubota V2403BM-DI-CTO4e (stage Ⅲ)
Power
36.0kW/2600rpm
Fuel Tank
90 L
Hydraulic Tank
120 L
