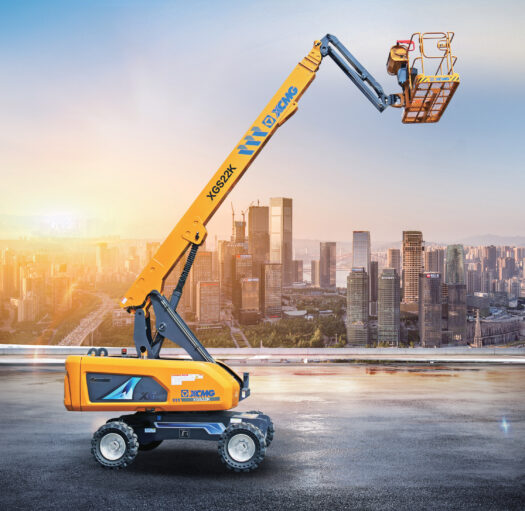

XGS22K

Boom Lift

PERFORMANCE | RELIABILITY | DURABILITY | VERSATILITY | VALUE
Boom Lift

XGS22K

Max Work Height
22m
Max Platform Height
20m
Load Capacity
300kg
Horizontal Reach
17.2m
Download brochure
Request price
Book Test drive

Description

The XCMG Australia XGS22K Boom Lift is engineered for dynamic material handling in warehouse and industrial settings. With robust strength and advanced features, it ensures precise and efficient elevation, handling capacities from 240kg to 1.5t.

This boom lift combines power and agility, offering reliable solutions for Elevated Maintenance Platforms, Personnel Lifts, and Facilities Platforms. Explore our range of Electric Boom Lifts and Outdoor Access Equipment, all designed to optimize operational efficiency. Trust XCMG Australia’s commitment to delivering innovative material handling solutions.

Specifications

Max Working Height
22m
Max Platform Height
20m
Horizontal Reach
17.2m
Load Capacity of Extended Platform
300/460 (Limited) kg
Minimum Ground Clearance
230mm
Boom Luffing Range
-3~+73 Degrees
Fly Jib Luffing Range
-65~+70 Degrees
Rotation Angle of Turntable
360 Degrees
Maximum Tail Swing Stowed
1310 mm
Platform Size
2440 x 900 x 1150 mm
Rotation Angle of Platform
160 Degrees
Total Machine Weight
12460kg
Maximum Travel Speed
6.3 km/h Contracted – 0.6 km/h Extended
Minimum Turning Radius
1.9m Inside / 4.7m Outside
maximum Gradeability
45% 24o Counterweight End Up / 30 % 17o Counterweight End Down
Overall Length
10.08 m Stowed in Operation / 9.85 m Transport Short Arm Folded Down
Overall Width
2.49 m
Overall Height
2.53 m
Tyre Specification
36×14-20 355 / 55D625
Wheelbase
2.5 m
Engine Type
Kubota V2403BM-DI-CTO4e (stage Ⅲ)
Power
36.0kW/2600rpm
Fuel Tank
150 L
Hydraulic Tank
120 L
